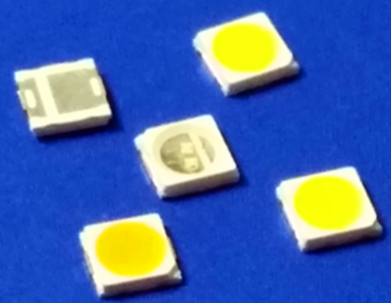

SMD3030系列LED贴片部份
详情说明 / Details
| SMD3030系列（3.0*3.0*0.65mm）MOQ:3000PCS |
 |  |
|
|
|
|
|
|
|
| 产品型号（Model） | 颜色（Color） | 产品规格（mm） | 波长范围(nm) | 电压范围(V) | 电流(mA) | 发光角度(deg) | 亮度范围(mcd) | 备注 |
| XM-S3030RTP | Red | 3.0x3.0x0.65 | 620-630 | 1.8-2.4 | 350 | 120 | | 具体规格参数请查阅旭铭光电对应产品型号规格书（可以根据客户要求另定制产品） |
| XM-S3030GTP | Green | 3.0x3.0x0.65 | 520-530 | 2.8-3.4 | 350 | 120 | |
| XM-S3030BTP | Blue | 3.0x3.0x0.65 | 460-470 | 2.8-3.4 | 350 | 120 | |
| XM-S3030YTP | Yellow | 3.0x3.0x0.65 | 585-595 | 1.8-2.4 | 350 | 120 | |
| XM-S3030YGTP | Yellow Green | 3.0x3.0x0.65 | 565-575 | 1.8-2.4 | 350 | 120 | |
| XM-S3030OTP | Orange | 3.0x3.0x0.65 | 600-610 | 1.8-2.4 | 350 | 120 | |
| XM-S3030WTP | White | 3.0x3.0x0.65 | | 2.8-3.4 | 350 | 120 | |
| XM-S3030ULTP | Ultraviolet | 3.0x3.0x0.65 | 400-430 | 2.8-3.4 | 350 | 120 | |
