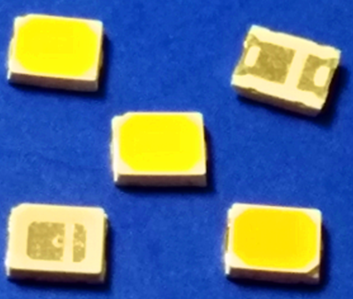

SMD2835系列LED贴片部份
详情说明 / Details

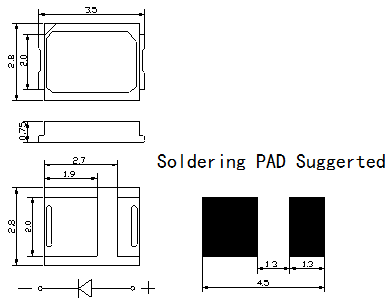

| SMD2835单色系列（2.8*3.5*0.75mm）MOQ:4000PCS |
 |  |
|
|
|
|
|
|
|
| 产品型号（Model） | 颜色（Color） | 产品规格（mm） | 波长范围(nm) | 电压范围(V) | 电流(mA) | 发光角度(deg) | 亮度范围(mcd) | 备注 |
| XM-S2835RTP | Red | 2.8x3.5x0.75 | 620-630 | 1.8-2.4 | 60/150 | 120 | | 具体规格参数请查阅旭铭光电对应产品型号规格书（可以根据客户要求另定制产品） |
| XM-S2835GTP | Green | 2.8x3.5x0.75 | 520-530 | 2.8-3.4 | 60/150 | 120 | |
| XM-S2835BTP | Blue | 2.8x3.5x0.75 | 460-470 | 2.8-3.4 | 60/150 | 120 | |
| XM-S2835YTP | Yellow | 2.8x3.5x0.75 | 585-595 | 1.8-2.4 | 60/150 | 120 | |
| XM-S2835YGTP | Yellow Green | 2.8x3.5x0.75 | 565-575 | 1.8-2.4 | 60/150 | 120 | |
| XM-S2835OTP | Orange | 2.8x3.5x0.75 | 600-610 | 1.8-2.4 | 60/150 | 120 | |
| XM-S2835WTP | White | 2.8x3.5x0.75 | | 2.8-3.6 | 60/150 | 120 | |
| XM-S2835ULTP | Ultraviolet | 2.8x3.5x0.75 | 400-430 | 2.8-3.4 | 60/150 | 120 | |
