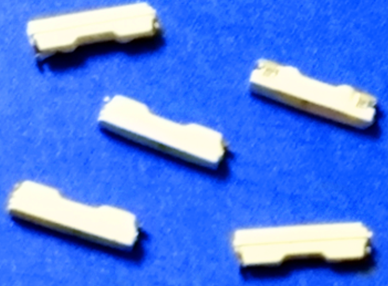

SMD020侧发光系列LED贴片部份
详情说明 / Details
| SMD020单色系列（3.8*1.0*0.6mm）MOQ:4000PCS |
 |  |
|
|
|
|
|
|
|
| 产品型号（Model） | 颜色（Color） | 产品规格（mm） | 波长范围(nm) | 电压范围(V) | 电流(mA) | 发光角度(deg) | 亮度范围(mcd) | 备注 |
| XM-S3806RSP | Red | 3.8x1.0x0.6 | 620-630 | 1.8-2.4 | 20 | 120 | | 具体规格参数请查阅旭铭光电对应产品型号规格书（可以根据客户要求另定制产品） |
| XM-S3806GSP | Green | 3.8x1.0x0.6 | 520-530 | 2.8-3.4 | 20 | 120 | |
| XM-S3806BSP | Blue | 3.8x1.0x0.6 | 460-470 | 2.8-3.4 | 20 | 120 | |
| XM-S3806YSP | Yellow | 3.8x1.0x0.6 | 585-595 | 1.8-2.4 | 20 | 120 | |
| XM-S3806YGSP | Yellow Green | 3.8x1.0x0.6 | 565-575 | 1.8-2.4 | 20 | 120 | |
| XM-S3806OSP | Orange | 3.8x1.0x0.6 | 600-610 | 1.8-2.4 | 20 | 120 | |
| XM-S3806WSP | White | 3.8x1.0x0.6 | | 2.8-3.6 | 20 | 120 | |
| XM-S3806ULSP | Ultraviolet | 3.8x1.0x0.6 | 400-430 | 2.8-3.4 | 20 | 120 | |
