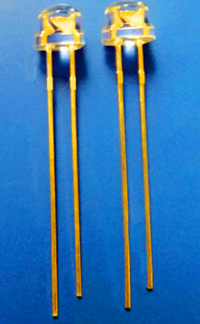

5MM草帽头系列LED插件部份
详情说明 / Details

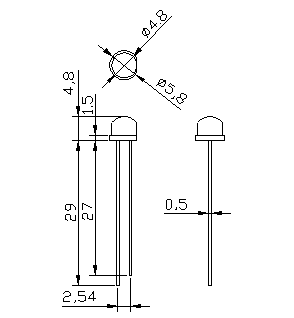

| 插件5mm草帽头单色系列（胶体5.8*4.8mm）MOQ:1000PCS |
 |  |
|
|
|
|
|
|
|
| 产品型号（Model） | 颜色（Color） | 产品规格（mm） | 波长范围(nm) | 电压范围(V) | 电流(mA) | 发光角度(deg) | 亮度范围(mcd) | 备注 |
| XM-L548WRP | Red | 5.8*4.8 | 620-630 | 1.8-2.4 | 20 | | | 具体规格参数请查阅旭铭光电对应产品型号规格书（可以根据客户要求另定制产品） |
| XM-L548WGP | Green | 5.8*4.8 | 520-530 | 2.8-3.4 | 20 | | |
| XM-L548WBP | Blue | 5.8*4.8 | 460-470 | 2.8-3.4 | 20 | | |
| XM-L548WYP | Yellow | 5.8*4.8 | 585-595 | 1.8-2.4 | 20 | | |
| XM-L548WYGP | Yellow Green | 5.8*4.8 | 565-575 | 1.8-2.4 | 20 | | |
| XM-L548WOP | Orange | 5.8*4.8 | 600-610 | 1.8-2.4 | 20 | | |
| XM-L548WWP | White | 5.8*4.8 | | 2.8-3.4 | 20 | | |
| XM-L548WULP | Ultraviolet | 5.8*4.8 | 400-430 | 2.8-3.4 | 20 | | |
