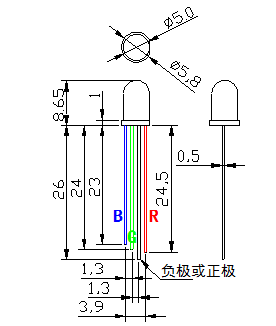

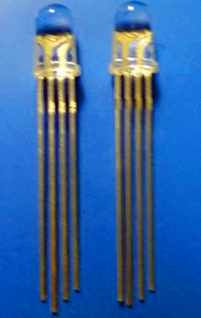

5MM圆头RGB系列LED插件部份
详情说明 / Details
| 插件5mmRGB系列（胶体5.8*8.65mm）MOQ:1000PCS |
 |  |
|
|
|
|
|
|
|
| 产品型号（Model） | 颜色（Color） | 产品规格（mm） | 波长范围(nm) | 电压范围(V) | 电流(mA) | 发光角度(deg) | 亮度范围(mcd) | 备注 |
| XM-L586RGBP | Red | 5.8*8.65 | 620-630 | 1.8-2.4 | 20 | | | 具体规格参数请查阅旭铭光电对应产品型号规格书（可以根据客户要求另定制产品） |
| Green | 5.8*8.65 | 520-530 | 2.8-3.4 | 20 | | |
| Blue | 5.8*8.65 | 460-470 | 2.8-3.4 | 20 | | |
| XM-L586RGBP | Red | 5.8*8.65 | 620-630 | 1.8-2.4 | 20 | | |
| Green | 5.8*8.65 | 520-530 | 2.8-3.4 | 20 | | |
| Yellow | 5.8*8.65 | 585-595 | 1.8-2.4 | 20 | | |
